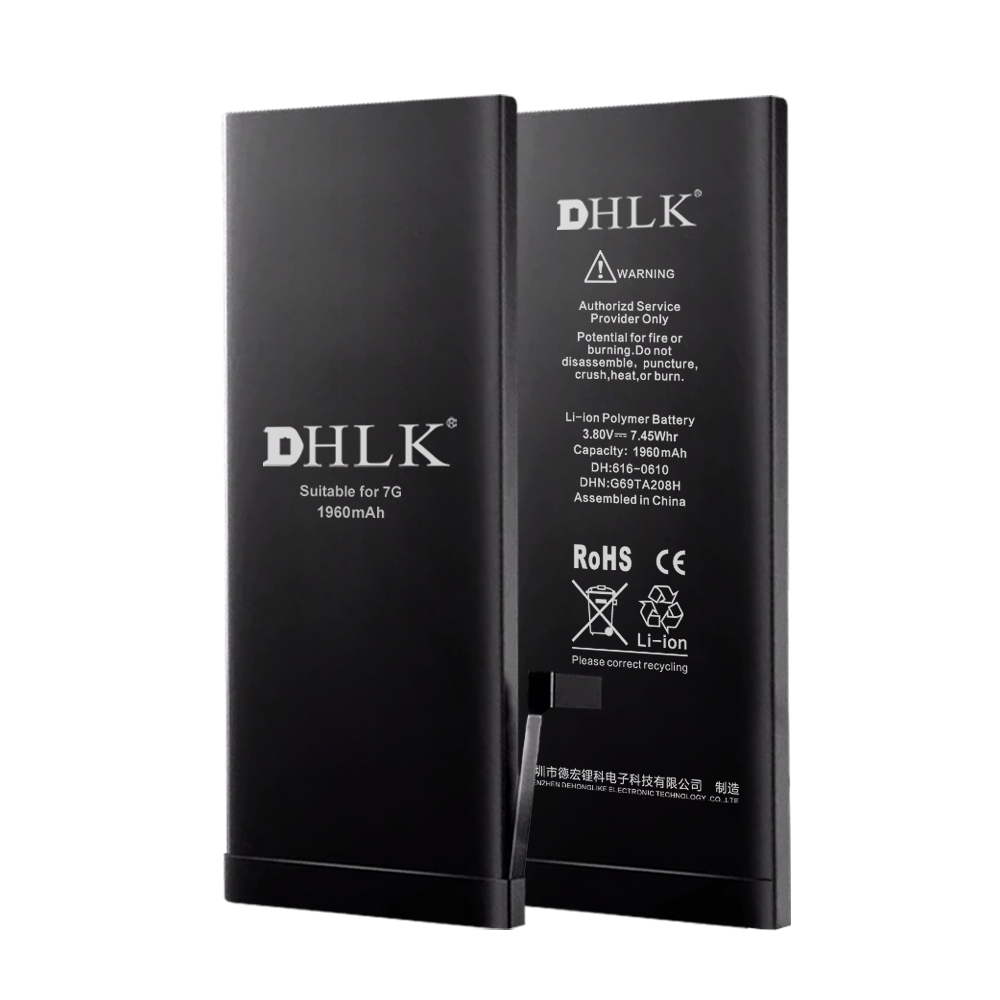

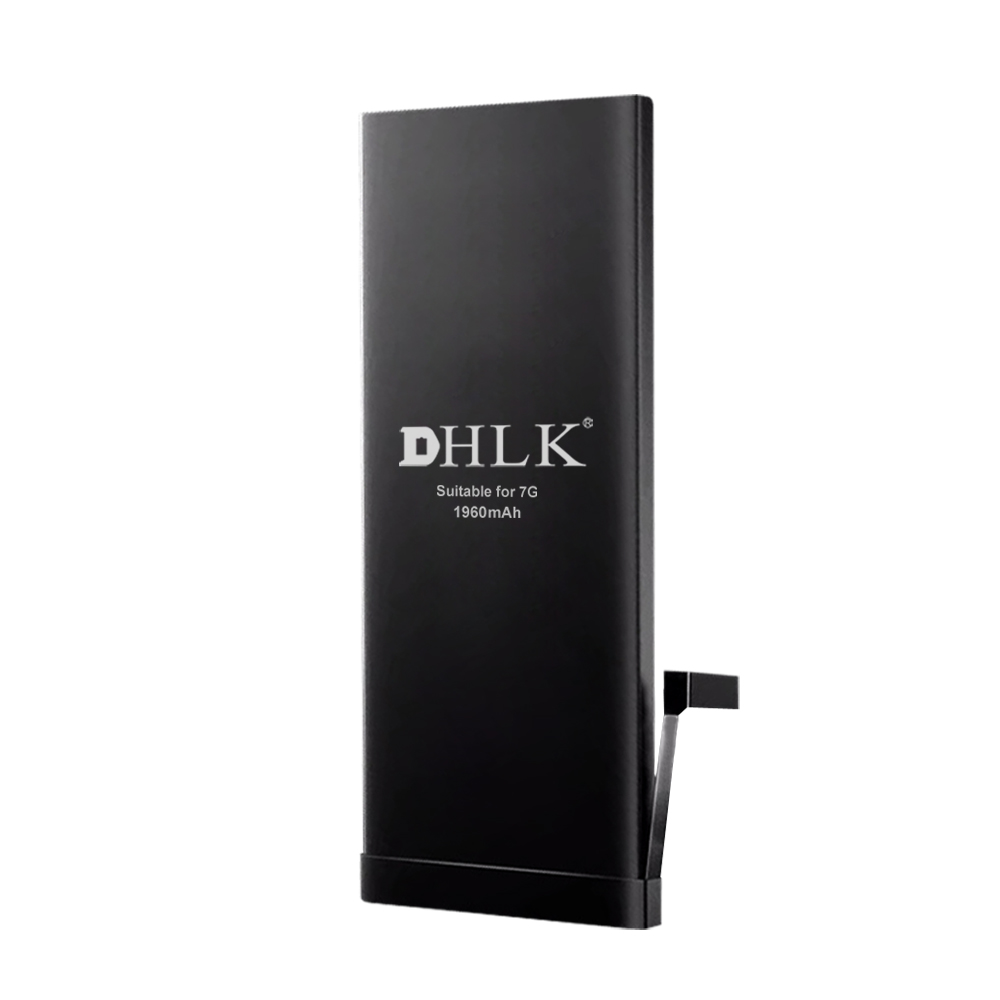

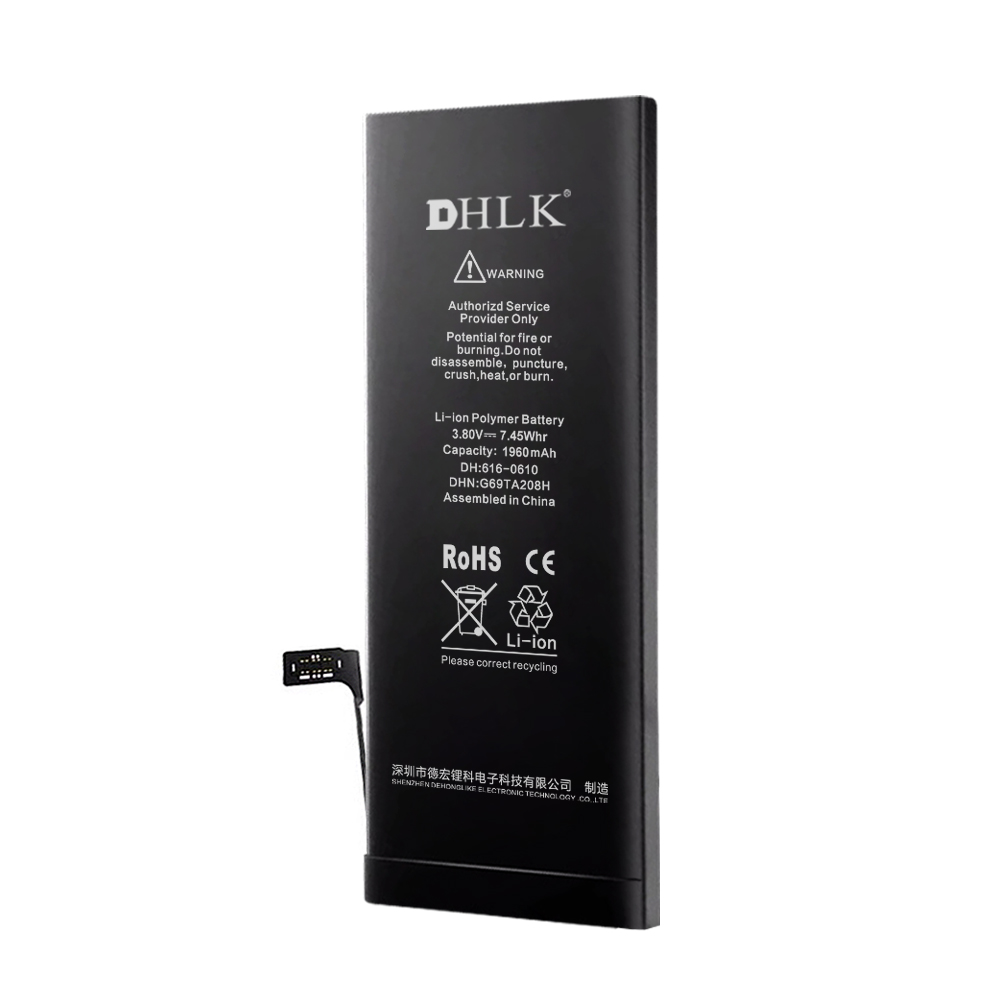

iP 7G Battery
iP 7G Battery
iP 7G

Brand Name:

DHLK logo/ OEM logo

Use: Mobile Phone

Place of Origin:Guangdong, China

Compatible Brand:For iPhone

Battery type:Lithium-ion Rechargeable Battery

Battery Cell Grade:A Grade

Capacity:1960 mAh

Working temperature:-20 degrees to 50 degrees

Charging life cycle:Over 500 times

Cycle:0 cycle, brand new battery

Warranty:12 months

Certificate:CE ROHS MSDS UN38.3 etc

Packaging & Delivery

Selling Units:Single item

Single package size: 13.3X6.6X1.3 cm

Single gross weight:0.180 kg

Package Type:white box, 150pcs in one carton, 6.9KG, carton size: 35*25*25cm


iP 7G Battery iP 7G Battery iP 7G Battery iP 7G Battery iP 7G Battery

项目

Items

标准

Criteria

备注

Remark

容量Capacity

1960mAh



标称电压Normal Voltage

3.82V



出货电压Shipment voltage

3.85-4.05V



放电截止电压

discharging ending voltage

 3.2V



标准充电模式

Standard Charge Method

恒流、恒压

Constant current/voltage

在环境温度下(25±3) ℃条件下,以0.2C(恒流)充电至4.35V,再恒压4.35V充电直至充电电流≤0.02c Under ambient temperature of (25±3,charge at 0.2C(constant current) to 4.35V,recharge at 4.35V (constant voltage)until charging current ≤ 0.02c

标准充电电流

Standard charge current

392mA

0.2C

标准充电电压Standard charging voltage

4.35±0.05V



标准放电电流Standard discharge current

最大放电电流 Maximum discharge current

392mA

-20~45℃

1960mA

电池内阻  Battery Resistance

≤140mΩ

标准充电后AC 1KHz测试

AC 1KHz after standard charge

外形尺寸

SIZE

长度L

94±0.5mm

游标卡尺

Calipers

宽度W

39±0.5mm

厚度H

3.2±0.2mm

线长 Wire length

/

工作温度    Operating Temperature

充电

Charge

10~45℃、45~85%RH



放电

Discharge

-20~45℃、45~85%RH

储存温度和湿度范围Storage temperature and humidity range

短期:一个月以内More than one month

-20~+55℃、45~85%RH

温湿度计

Hygrometer

中期:三个月以内More than three months

-20~+45℃、45~85%RH

长期:一年以内Within one year

-5~+30℃、45~85%RH
