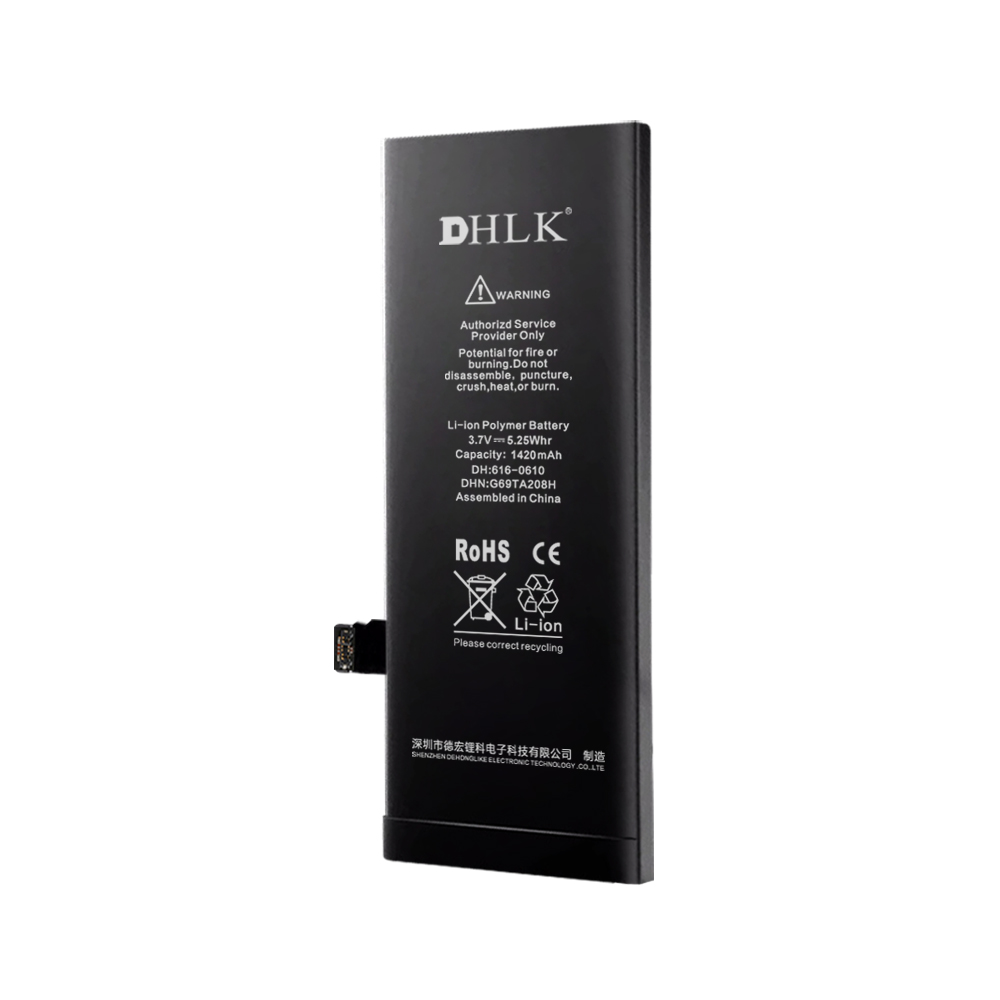

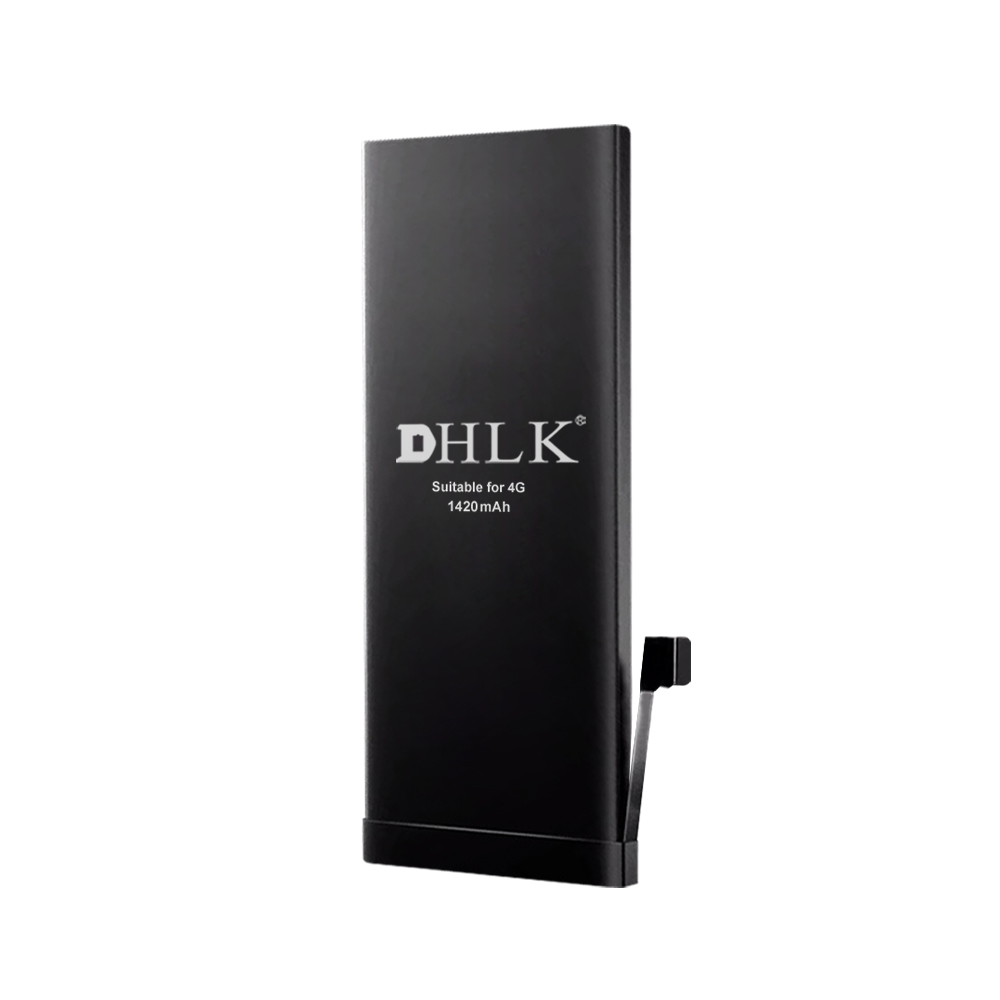

iP 4G Battery
iP 4G
Brand Name:
DHLK logo/ No logo
Use:Mobile Phone
Place of Origin:Guangdong, China
Compatible Brand:For iPhone
Battery type:Lithium-ion Rechargeable Battery
Battery Cell Grade:A Grade
Capacity:1420 mAh
Voltage:3.7 V- 4.2V
Working temperature:-20 degrees to 50 degrees
Charging life cycle:Over 500 times
Cycle:0 cycle, brand new battery
Warranty:12 months
Certificate:CE ROHS MSDS UN38.3 etc
Packaging & Delivery
Selling Units:Single item
Single package size: 13.3X6.6X1.3 cm
Single gross weight:0.180 kg
Package Type:white box, 150pcs in one carton, 5.8KG, carton size: 35*25*25cm
| Items | Criteria | Remark | |
| Capacity | 1420mAh | ||
| Nominal Voltage | 3.7V | ||
| Shipments voltage | 3.85-4.05V | ||
| discharging ending voltage | 3.2V | ||
| Standard Charge Method | CC/CV |
At ambient temperature (20 + 5) ℃ condition, Charge to 4.2V with 0.5C (constant current), Recharging the charging current of 4.2V until the charging current is less than 0.01c |
|
| Standard charge current | 710mA | 0.5C | |
| Standard charging voltage | 4.2±0.05V | ||
| Standard discharge current | 284mA | -20～45℃ | |
| Maximum discharge current | 1420mA | ||
| Battery Resistance | ≤160mΩ | AC 1KHz after standard charge | |
| SIZE | L | 82.5±0.15mm | Calipers |
| W | 32±0.15mm | ||
| H | 4.1±0.15mm | ||
| Wire length | / | ||
| Operating Temperature | Charge | 10～45℃、45～85%RH | |
| Discharge | -20～45℃、45～85%RH | ||
| Storage temperature and humidity range | More than one month | -20~+55℃、45~85%RH | Hygrometer |
| More than three months | -20~+45℃、45~85%RH | ||
| Within one year | -5~+30℃、45~85%RH | ||
